PHILIPS TUNER 22AH673

-


.

Hiernaast:

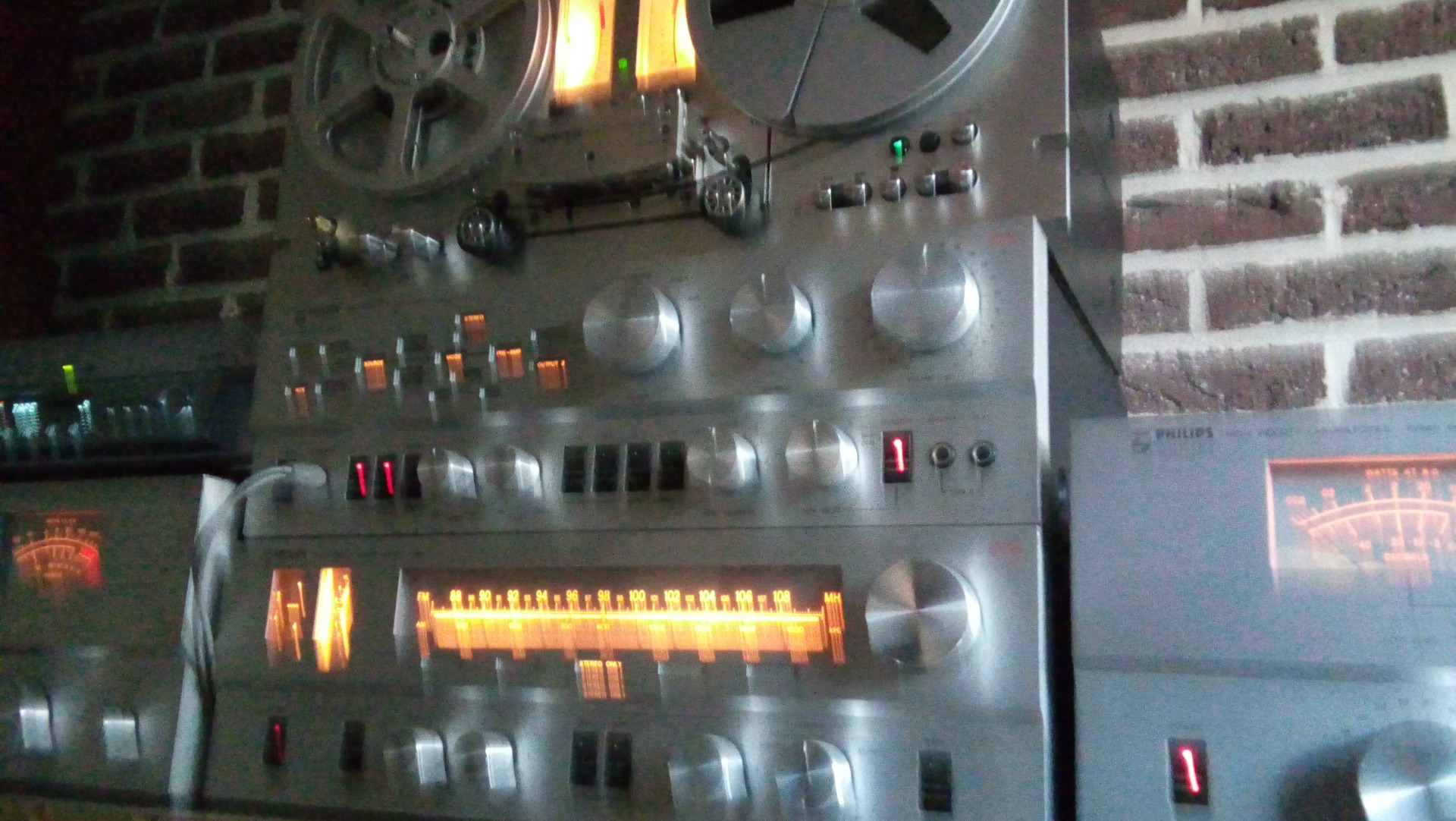

de Lab set tuner samen met zijn 2 versterkers, de voorversterker en een glimp van de Pioneer RT-707 tape-deck.

Philips Lab series Tuner 22AH673

Technische gegevens:

Golfgebieden: Middengolf 187 - 555 meter, FM band: 87,5 - 108 MHz

  • FM gevoeligheid (IHF): 0,8 uV
  • Totale harmonische vervorming: Mono 0,09%, stereo 0,1%
  • Frequentiegebied (LF): 20 - 15.000 Hz (+0,5-1,0dB)
  • Capture ratio (1mV input): 1,0dB
  • Selectiviteit (100uV input): 83dB
  • Signaal/ruisverhouding (1mV, 75kHz zwaai): 70 dB
  • Onderdrukking piloottoon: 65dB
  • Kanaalscheiding: 45dB
  • AM onderdrukking: 55dB
  • MF-onderdrukking: 110dB
  • Spiegelonderdrukking: 110dB
  • Veraf-selectiviteit: 110dB
  • Muting drempel: 2-20uV instelbaar
  • AM gevoeligheid bij 26dB signaal/ruisverhouding: 46uV
  • Selectiviteit: 40dB
  • MF-onderdrukking: 60dB
  • Afmetingen: 150 x 480 x 380 mm.

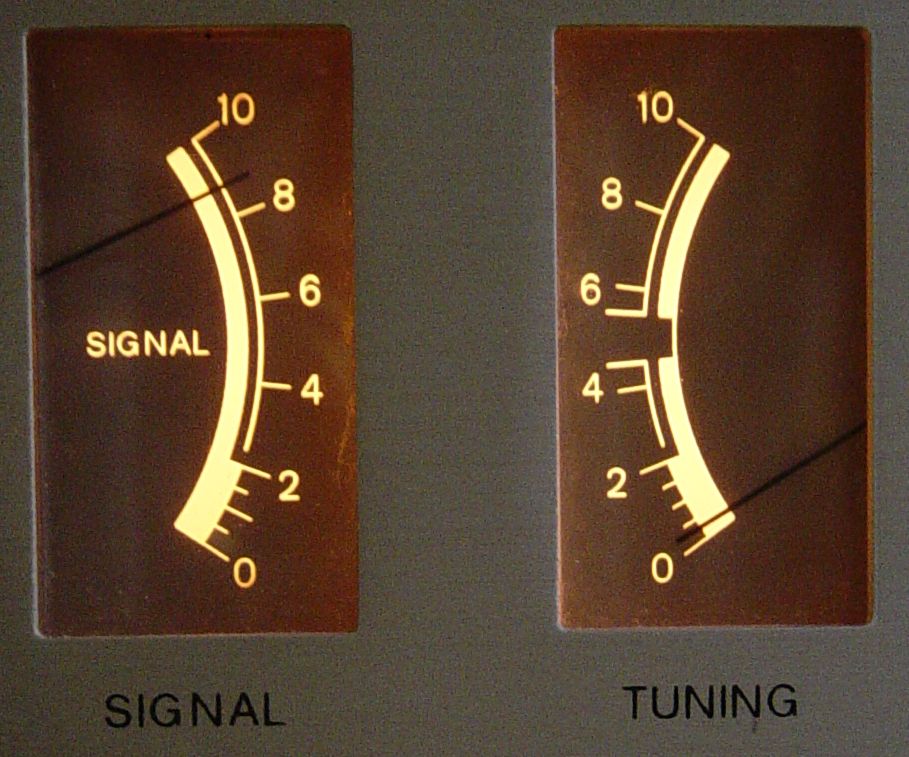

22AH673 - Professionele Hifi tuner met dual-gate fieldeffect transistoren, regelbare AM bandbreedteen schakelbare ASNC-capture ratio van 1,0dB, frequentiegebied op FM 20-15.000 Hz, op AM 20-9.000 Hz, FM signaal-ruisverhouding beter dan 70dB. Geschikt voor de ontvangst van de FM band (87,5-10MHz) en de middengolf. Door toepassing van dual-gate fieldeffect transistoren ontstaan uitstekende waarden o.a. voor oscillatordrift waardoor optimale en zeer stabiele ontvangst op AM en FM. AM bandbreedte op twee standen regelbaar. Phase Locked Loop FM/stereodecoder met keuze uit automatische stereo/mono overschakeling, stereo only (ontvangst van uitsluitend in stereo uitgezonden programma's) en ontvangst van alle programma's uitsluitend in mono. Schakelbare Automatic Stereo Noise Cancelling (ASNC) onderdrukt hinderlijke bijgeluiden bij de ontvangst van zwakkere FM/stereo zenders, waarbij de hoogst bereikbare graad van stereo kanaalscheiding gehandhaafd blijft. Schakelbare FM mute (stille afstemming) met continu regelbare drempel voor stille afstemming. Twee verlichte, duidelijk afleesbare indicatoren; een voor AM-FM veldsterkte, de ander voor kanaalmiddenafstemming, tevens omschakelbaar als multipath meter voor optimale instelling van eventueel aangesloten draaibare FM buitenantenne. Aansluiting voor oscillograaf ter controle van antenne-instelling. Inschakelbaar 9kHz AM filter voor ongestoorde ontvangst van middengolfzenders. Vast ingestelde resp. continu regelbare uitgangen voor FM en AM, met separate regelknoppen. Nauwkeurig afleesbare, grote afstemschaal. Afstemwijzer met vliegwielaandrijving. Verlicht paneel voor indicatie van ingeschakelde functies. Tiptoetsen met LED incicatoren voor eenvoudige en geruisloze bediening. Aansluitingen voor AM en FM buitenantennes (75 en 300 ohm). Geheel metalen kast met geschuurd, zwaar metalen front. Deze afstemeenheid is in technische specificaties, uitvoering en afmetingen geheel afgestemd op de stuurversterker AH572 en de eindversterker AH578.

Tegelijk met de tuner 22AH186 werd ook de supertuner 22AH673 uitgebracht. Deze ontvanger die aansloot op de 22AH572 voorversterker die eveneens uit de High Fidelity Laboratories afkomstig was, had alle specificaties waar een min of meer gepassioneerd radio-zendamateur steil van achterover zou slaan. Vergelijk de gegevens van de 22AH186 met de 22AH673 en je zult zien dat hier resultaten bereikt werden die voor de consumentenmarkt tot dan toe absoluut ondenkbaar waren.


Luisterervaring:

De 22AH673 is een erg mooie tuner met een schitterende, heldere ontvangst. De diverse filters voor AM zijn zeer doeltreffend. Een nadeel is het ontbreken van voorkeuzeknoppen, waarschijnlijk heeft de gebruiker die deze tuner in huis haalt dergelijke zaken niet nodig...

Voor- en nadelen.

Ze worden steeds zeldzamer de 22AH673's. Meeer dan 200€ voor een goed exemplaar is niet uitzonderlijk. U koopt dan een 35 jaar oude tuner waar wel het nodige aan dient te gebeuren. Omdat met name de condensatoren ruim over hun maximale houdbaarheid zijn. Verder moet er het e.e.a. schoongemaakt worden en opnieuw afgeregeld worden op fabrieksspecificaties.

Als u er een beetje deskundig mee omgaat heeft u een top tuner, de mooiste en beste ooit door dit merk gemaakt.

De 22AH673 is zowel technisch als esthetisch een juweeltje.

Uit eigen fotoarchief:

Gekopiëerde foto van de nog meer zeldzame Black-Line PHILIPS LAB-tuner 22AH673

Engelstalige beschrijving van de toch bijzondere PHILIPS LAB SERIES tuner 22AH673

A very large analog tuner with some sophisticated "bells and whistles," the AH673 has 5 FM gangs and an excellent AM section. Our panelist Bob A reports: "Wow, very different for a 1977 tuner. No ceramic filters anywhere inside. The IF filter, a single path, has 3 banks of 8 LC filters, yes, that is 24 LC elements! Next surprise: It was built entirely in the USA, possibly one of the last high performance U.S.-built tuners, besides the McIntosh and Sequerra units. Very interesting use of backlit etched tinned circuit boards for dial and meter displays, with incredible 100 kHz resolution ticks on the tuning dial. Touch-sensitive switches are the last interesting design element. Also nice is the continuously variable analog knob for muting, and the FM-only selection that totally mutes all but valid stereo signals regardless of strength. Selectivity is excellent and sound is superb, with a very natural midrange and accurate tone on violins and brass. Inside is a 5-gang FM tuning cap, and removable circuit boards with spring contacts similar to the Kenwood 600T. Very few ICs, almost entirely discrete design inside. This unit appears to have a very high-performance AM section as well, but I have not tested it yet. The AM section has a normal and high fidelity selection, as well as a 10 kHz filter. Overall, an interesting and unusual tuner that is well worth checking out if you stumble on one."

Bob's review is a close match for one Jim found in the "The Complete Buyer's Guide to Stereo/Hi-Fi Equipment" from 1978: "The Philips AH673, while quite costly for a conventional (non-synthesized) tuner, offers a number of sophisticated features to help offset the price. There's an automatic noise canceling circuit, variable muting and output level, multipath indication, and 'touch controls' for switching functions. In addition, the AM section is one of the best we've seen in a high-fidelity tuner." There's also a high-blend circuit that Philips calls "ANRS." Our contributor Jean-Pierre adds that the AH673 sounds far better than the Kenwood 600T and has a better midrange than the McIntosh MR 78. Our contributor Brian L. says, "I've owned the McIntosh MR 77 since new and it has gone up against some very good tuners and its sound has consistently been the winner. When I put it up against my AH6731, it was neck and neck for sound. Very close, with the Mac being slightly more smooth and preferred to the Philips." Our contributor J.C. found that his AH673 "locks onto stereo even with very weak signals, much more so than any other tuner I have used. You don't get anything in mono when on the auto mode, you have to invoke mono if you prefer mono on weaker signals." He also noted that the AH673 is "really nicely built. Reminds me of late '70s Hewlett-Packard test gear as far as construction. The headers and board connectors are good. There is really only one thing I don't like about the AH673: the dial. It's great from a user standpoint, but it's not the most attractive-looking dial. Most FM tuners with analog dials are sexier than this. This is more utilitarian-looking in that respect."

We don't have an explanation for this, but there appears to have been a very rare all-black AH673. The AH6731 is the normal (but still rare) all-black equivalent of the AH673. See how one AH6731 sounded compared to other top tuners on our Shootouts page, and read our panelist David "A"'s Ricochet for another viewpoint. Our contributor Dan adds, "All I can say is wow! I have a modded Sansui TU-517 and the AH6731 is just a cut above. For sensitivity, selectivity and sound, it flat out beats it hands down. It is just a marvelous sounding tuner - crystal-clear and very detailed, right through the frequency range." The normal sale price range for both the AH673 and AH6731 on eBay is $350-550. The all-time high was a bizarre $855 for a 673 in 5/03, and the recent low was $300 in 1/11.
